Interactive Demo | P&ID → HMI

Connect your Cursor API key

No Cursor API key configured. Paste your key in the Connect panel above, or set CURSOR_API_KEY in .env.local and restart the dev server. Get a key from Cursor Integrations.

Upload P&ID / PFD

PNG, JPEG, WebP, or PDF — generates process-hmi.yaml via Cursor agent

Connect API key to upload

PNG · JPEG · WebP · PDF

Chat

Refine via chat: "Move the boiler left — return the complete process-hmi.yaml"

Live HMI

PFD SampleScroll to zoom · drag to pan

Loading live tags…

Loading preview…

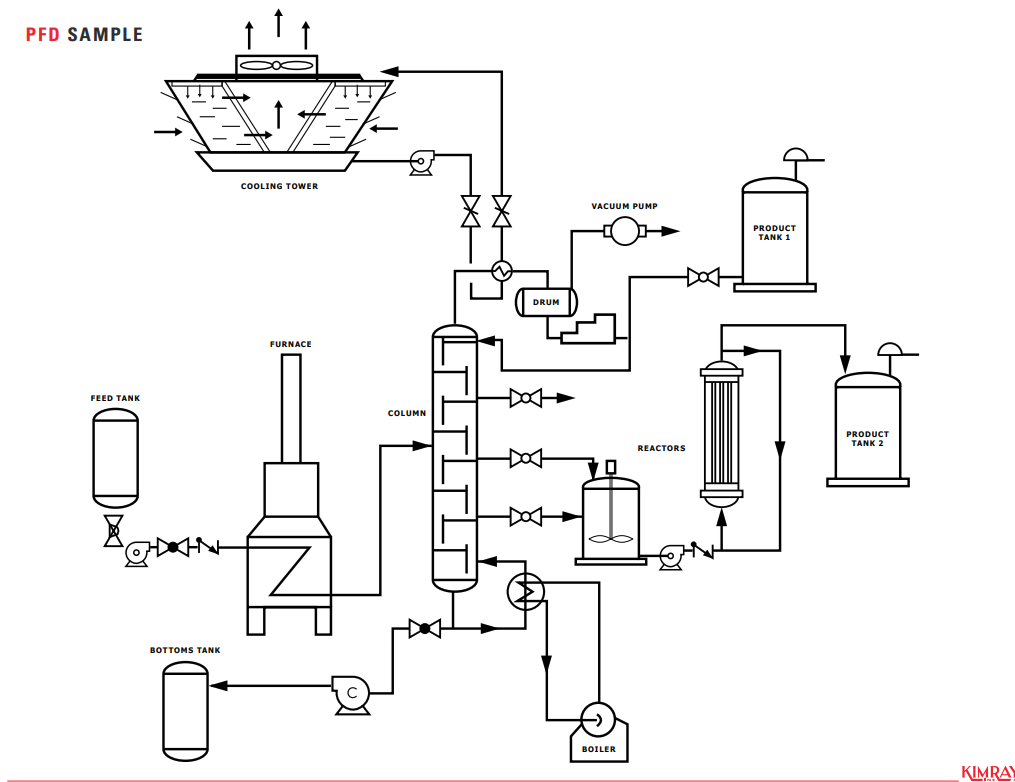

Source drawing

process-hmi.yaml

Valid

diagram:
  title: "PFD Sample"
  source: "docs/examples/pid_example.png"
  canvas:
    width: 1200
    height: 700

nodes:
  - id: feed_tank
    type: vertical_tank
    label: "FEED TANK"
    pos: { x: 0.07, y: 0.62 }
    tags: [LT-101]
    instruments:
      - tag: LT-101
        type: LT
        unit: "%"

- id: pump_feed
    type: pump
    label: "P-101"
    pos: { x: 0.14, y: 0.62 }

- id: furnace
    type: furnace
    label: "FURNACE"
    pos: { x: 0.22, y: 0.48 }
    tags: [TT-102]
    instruments:
      - tag: TT-102
        type: TT
        unit: "°F"

- id: column
    type: distillation_column
    label: "COLUMN"
    pos: { x: 0.38, y: 0.42 }
    tags: [PT-201, TT-201]
    instruments:
      - tag: PT-201
        type: PT
        unit: "psig"
      - tag: TT-201
        type: TT
        unit: "°F"

- id: cooling_tower
    type: cooling_tower
    label: "COOLING TOWER"
    pos: { x: 0.52, y: 0.1 }

- id: hx_overhead
    type: heat_exchanger
    label: "E-201"
    pos: { x: 0.48, y: 0.22 }

- id: drum
    type: horizontal_drum
    label: "DRUM"
    pos: { x: 0.62, y: 0.15 }
    tags: [LT-202]

- id: vacuum_pump
    type: vacuum_pump
    label: "VP-201"
    pos: { x: 0.72, y: 0.12 }

- id: product_tank_1
    type: vertical_tank
    label: "PRODUCT TANK 1"
    pos: { x: 0.82, y: 0.12 }
    tags: [LT-301]

- id: reactor
    type: reactor
    label: "REACTORS"
    pos: { x: 0.72, y: 0.42 }
    tags: [TT-401]

- id: hx_reactor
    type: heat_exchanger
    label: "E-401"
    pos: { x: 0.82, y: 0.42 }

- id: product_tank_2
    type: vertical_tank
    label: "PRODUCT TANK 2"
    pos: { x: 0.92, y: 0.42 }
    tags: [LT-402]

- id: pump_bottoms
    type: pump
    label: "P-202"
    pos: { x: 0.28, y: 0.78 }

- id: bottoms_tank
    type: vertical_tank
    label: "BOTTOMS TANK"
    pos: { x: 0.1, y: 0.82 }
    tags: [LT-203]

- id: hx_reboiler
    type: heat_exchanger
    label: "E-202"
    pos: { x: 0.48, y: 0.72 }

- id: boiler
    type: boiler
    label: "BOILER"
    pos: { x: 0.58, y: 0.82 }

alarms:
  LT-101: { lo: 10, hi: 90 }
  PT-201: { hi: 150, hiHi: 175 }
  TT-102: { hi: 350, hiHi: 400 }
  LT-202: { hi: 85, hiHi: 95 }
  LT-301: { hi: 90, hiHi: 95 }
  LT-402: { hi: 90, hiHi: 95 }
  LT-203: { lo: 15, loLo: 5 }

edges:
  - id: feed_to_pump
    from: { node: feed_tank, port: outlet }
    to: { node: pump_feed, port: inlet }
    kind: process

- id: pump_to_furnace
    from: { node: pump_feed, port: outlet }
    to: { node: furnace, port: inlet }
    kind: process
    tags: [FT-101]
    instruments:
      - tag: FT-101
        type: FT
        unit: gpm
        attach: { t: 0.5 }

- id: furnace_to_column
    from: { node: furnace, port: outlet }
    to: { node: column, port: feed }
    kind: process

- id: column_to_hx
    from: { node: column, port: top }
    to: { node: hx_overhead, port: inlet }
    kind: process
    tags: [PT-301]
    instruments:
      - tag: PT-301
        type: PT
        unit: psig
        attach: { t: 0.4 }

- id: hx_to_cooling
    from: { node: hx_overhead, port: outlet }
    to: { node: cooling_tower, port: inlet }
    kind: process

- id: hx_to_drum
    from: { node: hx_overhead, port: outlet }
    to: { node: drum, port: inlet }
    kind: process

- id: drum_to_vacuum
    from: { node: drum, port: outlet }
    to: { node: vacuum_pump, port: inlet }
    kind: process

- id: drum_to_product1
    from: { node: drum, port: outlet }
    to: { node: product_tank_1, port: inlet }
    kind: process

- id: column_to_reactor
    from: { node: column, port: side }
    to: { node: reactor, port: inlet }
    kind: process
    tags: [FT-401]
    instruments:
      - tag: FT-401
        type: FT
        unit: gpm
        attach: { t: 0.5 }

- id: reactor_to_hx_r
    from: { node: reactor, port: outlet }
    to: { node: hx_reactor, port: inlet }
    kind: process

- id: hx_r_to_product2
    from: { node: hx_reactor, port: outlet }
    to: { node: product_tank_2, port: inlet }
    kind: process

- id: column_to_reboiler
    from: { node: column, port: bottom }
    to: { node: hx_reboiler, port: inlet }
    kind: process

- id: reboiler_to_boiler
    from: { node: hx_reboiler, port: outlet }
    to: { node: boiler, port: inlet }
    kind: utility

- id: boiler_to_column
    from: { node: boiler, port: outlet }
    to: { node: column, port: feed }
    kind: utility

- id: column_to_pump_b
    from: { node: column, port: bottom }
    to: { node: pump_bottoms, port: inlet }
    kind: process

- id: pump_to_bottoms
    from: { node: pump_bottoms, port: outlet }
    to: { node: bottoms_tank, port: inlet }
    kind: process

Edit YAML directly — preview updates as you type.

P&ID → Process Flow HMI

Chat

Live HMI

Source drawing

process-hmi.yaml
